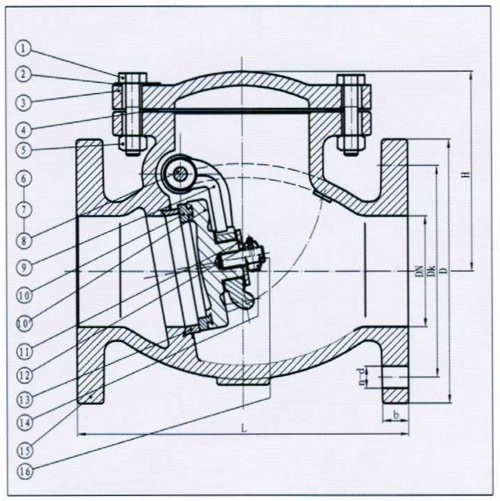

DIMENSION IN MILLIMETER |
|
SIZE |
2" |
2.5" |
3" |
4" |
5" |
6" |
8" |
10" |
12" |
14" |
16" |
|
L |
203.2 |
215.9 |
241.3 |
292 |
330.2 |
355.6 |
495 |
622 |
698.5 |
787 |
914 |
|
D |
152 |
178 |
190 |
228.6 |
254 |
279.4 |
343 |
406.4 |
483 |
533 |
597 |
|
Dk |
121 |
140 |
152.5 |
190.5 |
215.9 |
241 |
298.5 |
362 |
432 |
476 |
540 |
|
b |
15.9 |
17.5 |
19 |
24 |
23.4 |
25.4 |
30 |
31 |
31.8 |
35 |
36.6 |
|
n-d |
4-19 |
4-19 |
4-19 |
8-19 |
8-22 |
8-22 |
8-22 |
12-25 |
12-25 |
12-29 |
16-29 |
|
H |
113 |
133 |
144 |
168 |
195 |
217 |
260 |
287 |
319 |
443 |
596 |
MATERIAL LIST
|
No. |
Part |
Material |
USA Standard |
|
1 |
Bolts |
Steel |
ASTM A307 B |
|
2 |
Identification Plate |
Aluminium |
|
|
3 |
Bonnet |
Cast iron |
ASTM A126 Class B |
|
4 |
Body Gasket |
Graphite |
Non Asbestos |
|
5 |
Nuts |
Steel |
ASTM A307 B |
|
6 |
Side Plug |
Brass |
ASTM B16 |
|
7 |
Gasket |
Fiber |
|
|
8 |
Hanger Pin |
Brass |
ASTM B16 |
|
9 |
Hanger |
Ductile Iron |
ASTM A536 65-45-12 |
|
10 |
Disc Ring |
Cast Bronze |
ASTM B62 |
|
10 |
Disc |
Cast Iron |
ASTM A126 Class B |
|
11 |
Washer |
Steel |
ASTM A307 B |
|
12 |
Split Pin |
Stainless Steel |
ASTM A307 B |
|
13 |
Seat Ring |
Cast bronze |
ASTM B62 |
|
14 |
Disc Nut |
Steel |
ASTM A307B |
|
15 |
Body |
Cast Iron |
ASTM A126 Class B |
|
16 |
Stud Bolt |
Steel |
ASTM A307 B |
DESCRIPTION
1.Conform to MSS SP-71
2.Flange drilled to ANSIB16.1(125LB)
3.Face to face confom to ANSI B16.10(125LB)
4.Working pressure: 125S, 200WOG
5.Suitable media: water, oil, gas
6.Size:from 2"-16"
